Technical Parameters
| Electrical | Input Voltage | 24V Constant Voltage (CV), 24V Constant Current (CC) | ||||||||
| Power Consumption | 6W~14W/m | |||||||||
| Optical | LED Type & Brand | SMD 2835, Epistar | ||||||||
| CRI | >80, (R90, R95 customizable) | |||||||||
| Beam Angle | 160° (IES) | |||||||||

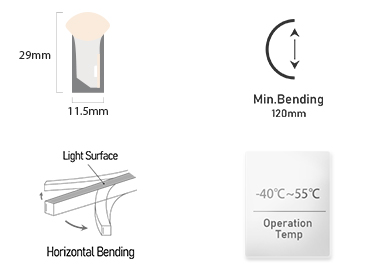

| Physical | Min. Bending Diameter | Φ120mm | ||||||||
| Temperature | Operation Temperature | -40℃~55℃ | ||||||||
| Max. Mounting Surface Temp. | 85℃ | |||||||||
| Durability | Warranty | 5 Years Warranty | ||||||||
| Max. IP Rating | IP67 | |||||||||
| Lumen Maintenance | 70,000 Hours L70 @ 25℃, 50,000 Hours L70 @ 50℃ | |||||||||
Models List
| Model No. | LED Color | Voltage | Working Mode | Power/m | LED Qty/m | Min. Cutting Length | Max. Run Length /Single End | |||
| SFS29-B-CV24-84-R80-6W | White/Green/Blue | 24V DC | CV | 6W | 84pcs | 71.4mm | 20m | |||
| SFS29-B-CV24-72-R80-7.8W | Red | 24V DC | CV | 7.8W | 72pcs | 125mm | 16m | |||
| SFS29-B-CV24-84-R80-9W | White/Green/Blue | 24V DC | CV | 9W | 84pcs | 71.4mm | 14m | |||
| SFS29-B-CV24-84-R80-12W | White/Green/Blue | 24V DC | CV | 12W | 84pcs | 71.4mm | 12m | |||
| SFS29-B-CV24-120-R80-12W | White/Green/Blue | 24V DC | CV | 12W | 120pcs | 50mm | 10m | |||
| SFS29-B-CC24-84-R80-6W | White/Green/Blue | 24V DC | CC | 6W | 84pcs | 71.4mm | 30m | |||
| SFS29-B-CC24-72-R80-7.8W | Red | 24V DC | CC | 7.8W | 72pcs | 125mm | 22m | |||
| SFS29-B-CC24-84-R80-9W | White/Green/Blue | 24V DC | CC | 9W | 84pcs | 71.4mm | 20m | |||
| SFS29-B-CC24-84-R80-12W | White/Green/Blue | 24V DC | CC | 12W | 84pcs | 71.4mm | 18m | |||
| SFS29-B-CC24-84-R80-14W | White/Green/Blue | 24V DC | CC | 14W | 84pcs | 71.4mm | 15m | |||
Optical Parameters
| MODEL: | Lumen/m (±5%) | |||||||||
| SFS29-B Series (R80 ) | ||||||||||
| CCT /Color | Tolerance | 6W/m | 7.8W/m | 9W/m | 12W/m | 14W/m | ||||
| 2200K |  | 2238K ±102K | 225lm | / | 315lm | 405lm | 450lm | |||
| 2700K |  | 2725K ±145K | 225lm | / | 315lm | 405lm | 450lm | |||
| 3000K |  | 3045K ±175K | 255lm | / | 325lm | 435lm | 485lm | |||
| 3500K |  | 3465K ±245K | 270lm | / | 355lm | 475lm | 515lm | |||
| 4000K |  | 3985K ±275K | 270lm | / | 355lm | 475lm | 515lm | |||
| 5000K |  | 5029K ±283K | 270lm | / | 355lm | 475lm | 515lm | |||
| 5700K |  | 5667K ±355K | 305lm | / | 385lm | 495lm | 535lm | |||
| 6500K |  | 6532K ±510K | 305lm | / | 385lm | 495lm | 535lm | |||
| Green |  | 520-530nm | 155lm | / | 225lm | 290lm | 320lm | |||
| Blue |  | 465-475nm | 34lm | / | 45lm | 52lm | 72lm | |||
| Red |  | 620-630nm | / | 155lm | / | / | / | |||
| Notes: More colors available - yellow / lemon yellow / orange / amber / pink / purple / turquoise. | ||||||||||

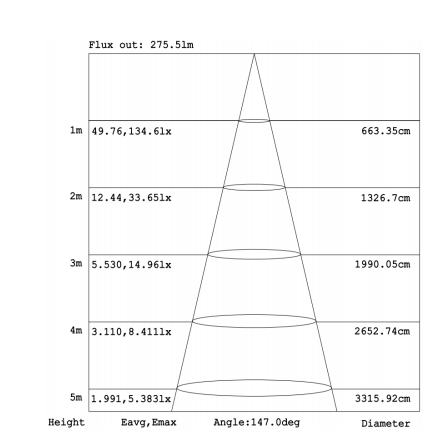

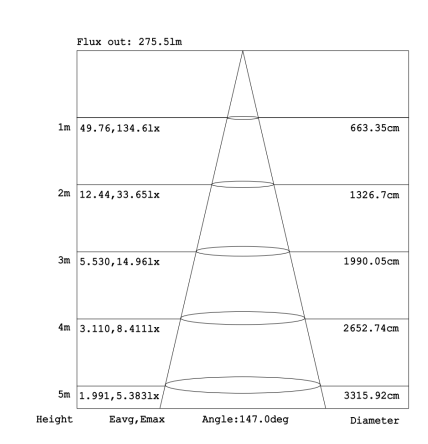

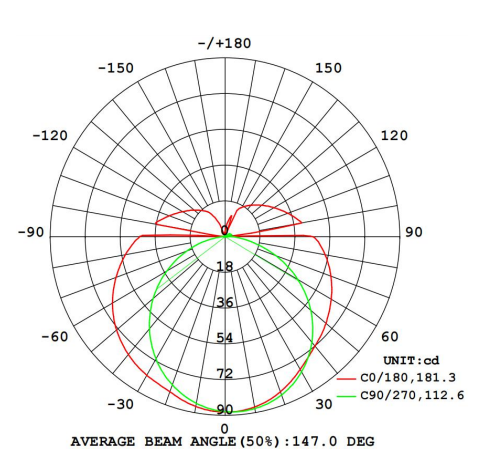

Illuminance Distribution
Download
Technical Specifications
| Electrical | Input Voltage | 24V, Constant Voltage (CV) | ||||||||
| Power Consumption | 15W/m | |||||||||
| Max. Run Length | Single End -8m; Double Ends -16m | |||||||||
| Optical | LED Type & Brand | SMD 3030, Epistar | ||||||||
| LED Color | 2200K+5700K | |||||||||
| CRI | >80, (R90, R95 customizable) | |||||||||
| Lumen/m | 230lm+300lm | |||||||||
| Beam Angle | 160° (IES) | |||||||||
| Physical | LED Qty | 108 LEDs/m | ||||||||
| Min. Cutting Length | 55.5mm | |||||||||
| Min. Bending Diameter | Φ120mm | |||||||||
| Temperature | Operation Temperature | -20℃~45℃ | ||||||||
| Max. Mounting Surface Temp. | 60℃ | |||||||||
| Durability | Warranty | 3 Years Warranty | ||||||||
| Lumen Maintenance | 70,000 Hours L70 @ 25℃, 50,000 Hours L70 @ 50℃ | |||||||||
| Max. IP Rating | IP68, underwater ≤ 2m | |||||||||

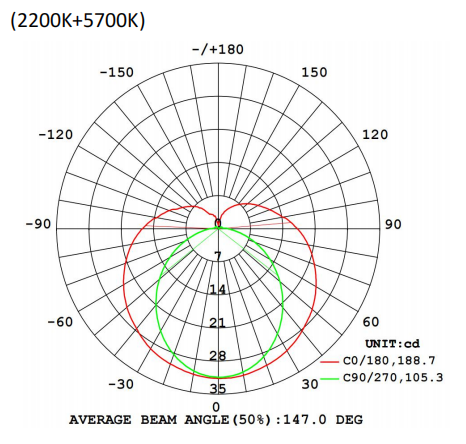

Illuminance Distribution
Download
Technical Specifications
| Electrical | Input Voltage | 24V, Constant Voltage (CV) | ||||||||
| Power Consumption | 12W/m | |||||||||
| Max. Run Length | Single End -10m; Double Ends -20m | |||||||||
| Optical | LED Type & Brand | SMD 5050, Epistar | ||||||||
| LED Color | RGB | |||||||||
| Lumen/m | 150lm±5% | |||||||||
| Beam Angle | 160° (IES) | |||||||||
| Physical | LED Qty | 60 LEDs/m | ||||||||
| Min. Cutting Length | 100mm | |||||||||
| Min. Bending Diameter | Φ120mm | |||||||||
| Temperature | Operation Temperature | -20℃~45℃ | ||||||||
| Max. Mounting Surface Temp. | 60℃ | |||||||||
| Durability | Warranty | 3 Years Warranty | ||||||||
| Lumen Maintenance | 70,000 Hours L70 @ 25℃, 50,000 Hours L70 @ 50℃ | |||||||||
| Max. IP Rating | IP68, underwater ≤ 2m | |||||||||
Download
Technical Parameters
| Electrical | Input Voltage | 24V Constant Voltage (CV), 24V Constant Current (CC) | ||||||||
| Power Consumption | 15W/m | |||||||||
| Optical | LED Type & Brand | SMD 5050, Epistar | ||||||||
| LED Color | RGBW | |||||||||
| Beam Angle | 160° (IES) | |||||||||
| Physical | LED Qty | 60 LEDs/m | ||||||||
| Min. Cutting Length | 100mm | |||||||||
| Min. Bending Diameter | Φ120mm | |||||||||
| Temperature | Operation Temperature | -20℃~45℃ | ||||||||
| Max. Mounting Surface Temp. | 60℃ | |||||||||
| Durability | Warranty | 3 Years Warranty | ||||||||
| Lumen Maintenance | 70,000 Hours L70 @ 25℃, 50,000 Hours L70 @ 50℃ | |||||||||
| Max. IP Rating | IP68, underwater≤2m | |||||||||
Models List
| Model No. | LED Color | Voltage | Working Mode | Power/m | LED Qty/m | Lumen/m | Max. Run Length /Single End | |||
| SF29-A-CV24-RGBW(27K)-60-15W | RGBW(2700K) | 24V DC | CV | 15W | 60pcs | 250lm±5% | 7m | |||
| SF29-A-CV24-RGBW(30K)-60-15W | RGBW(3000K) | 24V DC | CV | 15W | 60pcs | 250lm±5% | 7m | |||
| SF29-A-CV24-RGBW(40K)-60-15W | RGBW(4000K) | 24V DC | CV | 15W | 60pcs | 250lm±5% | 7m | |||
| SF29-A-CC24-RGBW(27K)-60-15W | RGBW(2700K) | 24V DC | CC | 15W | 60pcs | 250lm±5% | 12m | |||
| SF29-A-CC24-RGBW(30K)-60-15W | RGBW(3000K) | 24V DC | CC | 15W | 60pcs | 250lm±5% | 12m | |||
| SF29-A-CC24-RGBW(40K)-60-15W | RGBW(4000K) | 24V DC | CC | 15W | 60pcs | 250lm±5% | 12m | |||
Download
SF29 SPI Pixel - RGB/RGBW
| Model No. | Voltage | LED Color | IC Model | Power/m | LEDs/m | Lumen/m | Pixel /m | Min. Cutting Length | Max. Run Length /Single End | ||||
| SF29-S-SPI-CC24-RGB-56-12W | 24V DC | RGB | UCS8903B | 12W/m | 56pcs | 145lm±5% | 8 Pixels | 125mm | 10m | ||||
| SF29-S-SPI-CC24-RGB-70-15W | 24V DC | RGB | UCS8903B | 15W/m | 70pcs | 180lm±5% | 10 Pixels | 100mm | 7m | ||||
| SF29-S-SPI-CC24-RGBW(27K)-56-15W | 24V DC | RGBW(2700K) | UCS8904B | 15W/m | 56pcs | 250lm±5% | 8 Pixels | 125mm | 7m | ||||
| SF29-S-SPI-CC24-RGBW(30K)-56-15W | 24V DC | RGBW(3000K) | UCS8904B | 15W/m | 56pcs | 250lm±5% | 8 Pixels | 125mm | 7m | ||||
| SF29-S-SPI-CC24-RGBW(40K)-56-15W | 24V DC | RGBW(4000K) | UCS8904B | 15W/m | 56pcs | 250lm±5% | 8 Pixels | 125mm | 7m | ||||
| SF29-S-SPI-CC24-RGBW(27K)-70-18W | 24V DC | RGBW(2700K) | UCS8904B | 18W/m | 70pcs | 300lm±5% | 10 Pixels | 100mm | 7m | ||||
| SF29-S-SPI-CC24-RGBW(30K)-70-18W | 24V DC | RGBW(3000K) | UCS8904B | 18W/m | 70pcs | 300lm±5% | 10 Pixels | 100mm | 7m | ||||
| SF29-S-SPI-CC24-RGBW(40K)-70-18W | 24V DC | RGBW(4000K) | UCS8904B | 18W/m | 70pcs | 300lm±5% | 10 Pixels | 100mm | 7m | ||||
SF29 SPI Pixel - Single Color
| Model No. | Voltage | LED Color | IC Model | Power/m | LEDs/m | Lumen/m | Pixel /m | Min. Cutting Length | Max. Run Length /Single End | ||||
| SF29-S-SPI-CC24-27K-70-15W | 24V DC | 2700K | UCS8903B | 15W/m | 70pcs | 295lm±5% | 10 Pixels | 100mm | 7m | ||||
| SF29-S-SPI-CC24-30K-70-15W | 24V DC | 3000K | UCS8903B | 15W/m | 70pcs | 310lm±5% | 10 Pixels | 100mm | 7m | ||||
| SF29-S-SPI-CC24-40K-70-15W | 24V DC | 4000K | UCS8903B | 15W/m | 70pcs | 340lm±5% | 10 Pixels | 100mm | 7m | ||||
| SF29-S-SPI-CC24-50K-70-15W | 24V DC | 5000K | UCS8903B | 15W/m | 70pcs | 340lm±5% | 10 Pixels | 100mm | 7m | ||||
| SF29-S-SPI-CC24-57K-70-15W | 24V DC | 5700K | UCS8903B | 15W/m | 70pcs | 360lm±5% | 10 Pixels | 100mm | 7m | ||||
| SF29-S-SPI-CC24-R-70-15W | 24V DC | Red | UCS8903B | 15W/m | 70pcs | 160lm±5% | 10 Pixels | 100mm | 7m | ||||
| SF29-S-SPI-CC24-G-70-15W | 24V DC | Green | UCS8903B | 15W/m | 70pcs | 205lm±5% | 10 Pixels | 100mm | 7m | ||||
| SF29-S-SPI-CC24-B-70-15W | 24V DC | Blue | UCS8903B | 15W/m | 70pcs | 38lm±5% | 10 Pixels | 100mm | 7m | ||||
SF29 DMX Pixel - RGB/RGBW
| Model No. | Voltage | LED Color | IC Model | Power/m | LEDs/m | Lumen/m | Pixel /m | Min. Cutting Length | Max. Run Length /Single End | ||||
| SF29-S-DMX-CC24-RGB-70-15W | 24V DC | RGB | UCS512B3 | 15W/m | 70pcs | 180lm±5% | 10 Pixels | 100mm | 7m | ||||
| SF29-S-DMX-CC24-RGBW(27K)-70-18W | 24V DC | RGBW(2700K) | UCS512B4 | 18W/m | 70pcs | 300lm±5% | 10 Pixels | 100mm | 7m | ||||
| SF29-S-DMX-CC24-RGBW(30K)-70-18W | 24V DC | RGBW(3000K) | UCS512B4 | 18W/m | 70pcs | 300lm±5% | 10 Pixels | 100mm | 7m | ||||
| SF29-S-DMX-CC24-RGBW(40K)-70-18W | 24V DC | RGBW(4000K) | UCS512B4 | 18W/m | 70pcs | 300lm±5% | 10 Pixels | 100mm | 7m | ||||
SF29 DMX Pixel - Single Color/DW
| Model No. | Voltage | LED Color | IC Model | Power/m | LEDs/m | Lumen/m | Pixel /m | Min. Cutting Length | Max. Run Length /Single End | ||||
| SF29-S-DMX-CC24-27K-70-15W | 24V DC | 2700K | UCS512B3 | 15W/m | 70pcs | 295lm±5% | 10 Pixels | 100mm | 7m | ||||
| SF29-S-DMX-CC24-30K-70-15W | 24V DC | 3000K | UCS512B3 | 15W/m | 70pcs | 310lm±5% | 10 Pixels | 100mm | 7m | ||||
| SF29-S-DMX-CC24-40K-70-15W | 24V DC | 4000K | UCS512B3 | 15W/m | 70pcs | 340lm±5% | 10 Pixels | 100mm | 7m | ||||
| SF29-S-DMX-CC24-50K-70-15W | 24V DC | 5000K | UCS512B3 | 15W/m | 70pcs | 340lm±5% | 10 Pixels | 100mm | 7m | ||||
| SF29-S-DMX-CC24-57K-70-15W | 24V DC | 5700K | UCS512B3 | 15W/m | 70pcs | 360lm±5% | 10 Pixels | 100mm | 7m | ||||
| SF29-S-DMX-CC24-R-70-15W | 24V DC | Red | UCS512B3 | 15W/m | 70pcs | 160lm±5% | 10 Pixels | 100mm | 7m | ||||
| SF29-S-DMX-CC24-G-70-15W | 24V DC | Green | UCS512B3 | 15W/m | 70pcs | 205lm±5% | 10 Pixels | 100mm | 7m | ||||
| SF29-S-DMX-CC24-B-70-15W | 24V DC | Blue | UCS512B3 | 15W/m | 70pcs | 38lm±5% | 10 Pixels | 100mm | 7m | ||||
| SF29-S-DMX-CC24-DW-120-17W | 24V DC | Dual White | UCS512B4 | 17W/m | 120pcs | 370lm±5% | 10 Pixels | 100mm | 7m | ||||
Technical Parameters
| Electrical | Input Voltage | 24V Constant Voltage (CV), 24V Constant Current (CC) | ||||||||
| Power Consumption | 6W~14W/m | |||||||||
| Optical | LED Type & Brand | SMD 2835, Epistar | ||||||||
| CRI | >80, (R90, R95 customizable) | |||||||||
| Beam Angle | 160° (IES) | |||||||||
| Physical | Min. Bending Diameter | Φ120mm | ||||||||
| Temperature | Operation Temperature | -40℃~55℃ | ||||||||
| Max. Mounting Surface Temp. | 85℃ | |||||||||
| Durability | Warranty | 5 Years Warranty | ||||||||
| Max. IP Rating | IP67 | |||||||||
| Lumen Maintenance | 70,000 Hours L70 @ 25℃, 50,000 Hours L70 @ 50℃ | |||||||||
Models List
| Model No. | LED Color | Voltage | Working Mode | Power/m | LED Qty/m | Min. Cutting Length | Max. Run Length /Single End | |||
| SFS29-B-CV24-84-R80-6W | White/Green/Blue | 24V DC | CV | 6W | 84pcs | 71.4mm | 20m | |||
| SFS29-B-CV24-72-R80-7.8W | Red | 24V DC | CV | 7.8W | 72pcs | 125mm | 16m | |||
| SFS29-B-CV24-84-R80-9W | White/Green/Blue | 24V DC | CV | 9W | 84pcs | 71.4mm | 14m | |||
| SFS29-B-CV24-84-R80-12W | White/Green/Blue | 24V DC | CV | 12W | 84pcs | 71.4mm | 12m | |||
| SFS29-B-CV24-120-R80-12W | White/Green/Blue | 24V DC | CV | 12W | 120pcs | 50mm | 10m | |||
| SFS29-B-CC24-84-R80-6W | White/Green/Blue | 24V DC | CC | 6W | 84pcs | 71.4mm | 30m | |||
| SFS29-B-CC24-72-R80-7.8W | Red | 24V DC | CC | 7.8W | 72pcs | 125mm | 22m | |||
| SFS29-B-CC24-84-R80-9W | White/Green/Blue | 24V DC | CC | 9W | 84pcs | 71.4mm | 20m | |||
| SFS29-B-CC24-84-R80-12W | White/Green/Blue | 24V DC | CC | 12W | 84pcs | 71.4mm | 18m | |||
| SFS29-B-CC24-84-R80-14W | White/Green/Blue | 24V DC | CC | 14W | 84pcs | 71.4mm | 15m | |||
Optical Parameters
| MODEL: | Lumen/m (±5%) | |||||||||
| SFS29-B Series (R80 ) | ||||||||||
| CCT /Color | Tolerance | 6W/m | 7.8W/m | 9W/m | 12W/m | 14W/m | ||||
| 2200K | | 2238K ±102K | 225lm | / | 315lm | 405lm | 450lm | |||
| 2700K | | 2725K ±145K | 225lm | / | 315lm | 405lm | 450lm | |||
| 3000K | | 3045K ±175K | 255lm | / | 325lm | 435lm | 485lm | |||
| 3500K | | 3465K ±245K | 270lm | / | 355lm | 475lm | 515lm | |||
| 4000K | | 3985K ±275K | 270lm | / | 355lm | 475lm | 515lm | |||
| 5000K | | 5029K ±283K | 270lm | / | 355lm | 475lm | 515lm | |||
| 5700K | | 5667K ±355K | 305lm | / | 385lm | 495lm | 535lm | |||
| 6500K | | 6532K ±510K | 305lm | / | 385lm | 495lm | 535lm | |||
| Green | | 520-530nm | 155lm | / | 225lm | 290lm | 320lm | |||
| Blue | | 465-475nm | 34lm | / | 45lm | 52lm | 72lm | |||
| Red | | 620-630nm | / | 155lm | / | / | / | |||
| Notes: More colors available - yellow / lemon yellow / orange / amber / pink / purple / turquoise. | ||||||||||

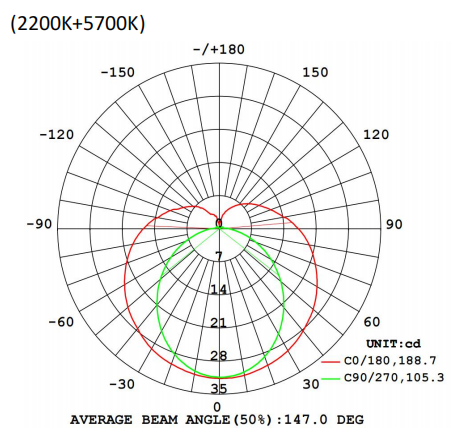

Illuminance Distribution
Download
Technical Specifications
| Electrical | Input Voltage | 24V, Constant Voltage (CV) | ||||||||
| Power Consumption | 15W/m | |||||||||
| Max. Run Length | Single End -8m; Double Ends -16m | |||||||||
| Optical | LED Type & Brand | SMD 3030, Epistar | ||||||||
| LED Color | 2200K+5700K | |||||||||
| CRI | >80, (R90, R95 customizable) | |||||||||
| Lumen/m | 255lm+335lm | |||||||||
| Beam Angle | 160° (IES) | |||||||||
| Physical | LED Qty | 108 LEDs/m | ||||||||
| Min. Cutting Length | 55.5mm | |||||||||
| Min. Bending Diameter | Φ120mm | |||||||||
| Temperature | Operation Temperature | -40℃~55℃ | ||||||||
| Max. Mounting Surface Temp. | 85℃ | |||||||||
| Durability | Warranty | 5 Years Warranty | ||||||||
| Max. IP Rating | IP67 | |||||||||
| Lumen Maintenance | 70,000 Hours L70 @ 25℃, 50,000 Hours L70 @ 50℃ | |||||||||

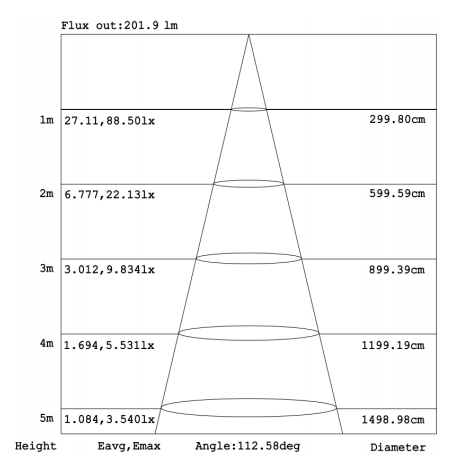

Illuminance Distribution
Download
Technical Specifications
| Electrical | Input Voltage | 24V, Constant Voltage (CV) | ||||||||
| Power Consumption | 12W/m | |||||||||
| Max. Run Length | Single End -10m; Double Ends -20m | |||||||||
| Optical | LED Type & Brand | SMD 5050, Epistar | ||||||||
| LED Color | RGB | |||||||||
| Lumen/m | 165lm±5% | |||||||||
| Beam Angle | 160° (IES) | |||||||||
| Physical | LED Qty | 60 LEDs/m | ||||||||
| Min. Cutting Length | 100mm | |||||||||
| Min. Bending Diameter | Φ120mm | |||||||||
| Temperature | Operation Temperature | -40℃~55℃ | ||||||||
| Max. Mounting Surface Temp. | 85℃ | |||||||||
| Durability | Warranty | 5 Years Warranty | ||||||||

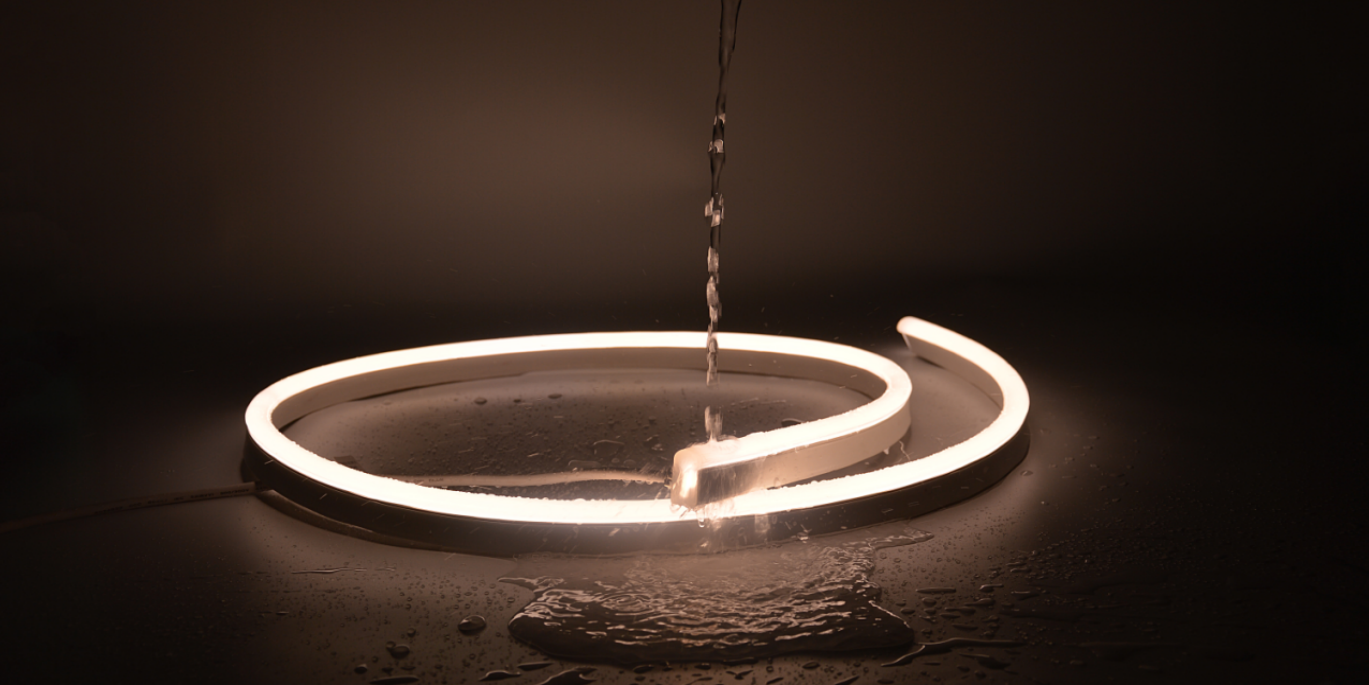

| Max. IP Rating | IP67 | |||||||||
| Lumen Maintenance | 70,000 Hours L70 @ 25℃, 50,000 Hours L70 @ 50℃ | |||||||||
Download
Technical Parameters
| Electrical | Input Voltage | 24V Constant Voltage (CV), 24V Constant Current (CC) | ||||||||
| Power Consumption | 15W/m | |||||||||
| Optical | LED Type & Brand | SMD 5050, Epistar | ||||||||
| LED Color | RGBW | |||||||||
| Beam Angle | 160° (IES) | |||||||||
| Physical | LED Qty | 60 LEDs/m | ||||||||
| Min. Cutting Length | 100mm | |||||||||
| Min. Bending Diameter | Φ120mm | |||||||||
| Temperature | Operation Temperature | -40℃~55℃ | ||||||||
| Max. Mounting Surface Temp. | 85℃ | |||||||||
| Durability | Warranty | 5 Years Warranty | ||||||||
| Max. IP Rating | IP67 | |||||||||
| Lumen Maintenance | 70,000 Hours L70 @ 25℃, 50,000 Hours L70 @ 50℃ | |||||||||
Models List
| Model No. | LED Color | Voltage | Working Mode | Power/m | LED Qty/m | Lumen/m | Max. Run Length /Single End | |||
| SFS29-A-CV24-RGBW(27K)-60-15W | RGBW(2700K) | 24V DC | CV | 15W | 60pcs | 280lm±5% | 7m | |||
| SFS29-A-CV24-RGBW(30K)-60-15W | RGBW(3000K) | 24V DC | CV | 15W | 60pcs | 280lm±5% | 7m | |||
| SFS29-A-CV24-RGBW(40K)-60-15W | RGBW(4000K) | 24V DC | CV | 15W | 60pcs | 280lm±5% | 7m | |||
| SFS29-A-CC24-RGBW(27K)-60-15W | RGBW(2700K) | 24V DC | CC | 15W | 60pcs | 280lm±5% | 12m | |||
| SFS29-A-CC24-RGBW(30K)-60-15W | RGBW(3000K) | 24V DC | CC | 15W | 60pcs | 280lm±5% | 12m | |||
| SFS29-A-CC24-RGBW(40K)-60-15W | RGBW(4000K) | 24V DC | CC | 15W | 60pcs | 280lm±5% | 12m | |||
Download
SFS29 SPI Pixel - RGB/RGBW
| Model No. | Voltage | LED Color | IC Model | Power/m | LEDs/m | Lumen/m | Pixel /m | Min. Cutting Length | Max. Run Length /Single End | ||||
| SFS29-S-SPI-CC24-RGB-56-12W | 24V DC | RGB | UCS8903B | 12W/m | 56pcs | 160lm±5% | 8 Pixels | 125mm | 10m | ||||
| SFS29-S-SPI-CC24-RGB-70-15W | 24V DC | RGB | UCS8903B | 15W/m | 70pcs | 200lm±5% | 10 Pixels | 100mm | 7m | ||||
| SFS29-S-SPI-CC24-RGBW(27K)-56-15W | 24V DC | RGBW(2700K) | UCS8904B | 15W/m | 56pcs | 280lm±5% | 8 Pixels | 125mm | 7m | ||||
| SFS29-S-SPI-CC24-RGBW(30K)-56-15W | 24V DC | RGBW(3000K) | UCS8904B | 15W/m | 56pcs | 280lm±5% | 8 Pixels | 125mm | 7m | ||||
| SFS29-S-SPI-CC24-RGBW(40K)-56-15W | 24V DC | RGBW(4000K) | UCS8904B | 15W/m | 56pcs | 280lm±5% | 8 Pixels | 125mm | 7m | ||||
| SFS29-S-SPI-CC24-RGBW(27K)-70-18W | 24V DC | RGBW(2700K) | UCS8904B | 18W/m | 70pcs | 335lm±5% | 10 Pixels | 100mm | 7m | ||||
| SFS29-S-SPI-CC24-RGBW(30K)-70-18W | 24V DC | RGBW(3000K) | UCS8904B | 18W/m | 70pcs | 335lm±5% | 10 Pixels | 100mm | 7m | ||||
| SFS29-S-SPI-CC24-RGBW(40K)-70-18W | 24V DC | RGBW(4000K) | UCS8904B | 18W/m | 70pcs | 335lm±5% | 10 Pixels | 100mm | 7m | ||||
SFS29 SPI Pixel - Single Color
| Model No. | Voltage | LED Color | IC Model | Power/m | LEDs/m | Lumen/m | Pixel /m | Min. Cutting Length | Max. Run Length /Single End | ||||
| SFS29-S-SPI-CC24-27K-70-15W | 24V DC | 2700K | UCS8903B | 15W/m | 70pcs | 330lm±5% | 10 Pixels | 100mm | 7m | ||||
| SFS29-S-SPI-CC24-30K-70-15W | 24V DC | 3000K | UCS8903B | 15W/m | 70pcs | 350lm±5% | 10 Pixels | 100mm | 7m | ||||
| SFS29-S-SPI-CC24-40K-70-15W | 24V DC | 4000K | UCS8903B | 15W/m | 70pcs | 380lm±5% | 10 Pixels | 100mm | 7m | ||||
| SFS29-S-SPI-CC24-50K-70-15W | 24V DC | 5000K | UCS8903B | 15W/m | 70pcs | 380lm±5% | 10 Pixels | 100mm | 7m | ||||
| SFS29-S-SPI-CC24-57K-70-15W | 24V DC | 5700K | UCS8903B | 15W/m | 70pcs | 405lm±5% | 10 Pixels | 100mm | 7m | ||||
| SFS29-S-SPI-CC24-R-70-15W | 24V DC | Red | UCS8903B | 15W/m | 70pcs | 180lm±5% | 10 Pixels | 100mm | 7m | ||||
| SFS29-S-SPI-CC24-G-70-15W | 24V DC | Green | UCS8903B | 15W/m | 70pcs | 230lm±5% | 10 Pixels | 100mm | 7m | ||||
| SFS29-S-SPI-CC24-B-70-15W | 24V DC | Blue | UCS8903B | 15W/m | 70pcs | 42lm±5% | 10 Pixels | 100mm | 7m | ||||
SFS29 DMX Pixel - RGB/RGBW
| Model No. | Voltage | LED Color | IC Model | Power/m | LEDs/m | Lumen/m | Pixel /m | Min. Cutting Length | Max. Run Length /Single End | ||||
| SFS29-S-DMX-CC24-RGB-70-15W | 24V DC | RGB | UCS512B3 | 15W/m | 70pcs | 200lm±5% | 10 Pixels | 100mm | 7m | ||||
| SFS29-S-DMX-CC24-RGBW(27K)-70-18W | 24V DC | RGBW(2700K) | UCS512B4 | 18W/m | 70pcs | 335lm±5% | 10 Pixels | 100mm | 7m | ||||
| SFS29-S-DMX-CC24-RGBW(30K)-70-18W | 24V DC | RGBW(3000K) | UCS512B4 | 18W/m | 70pcs | 335lm±5% | 10 Pixels | 100mm | 7m | ||||
| SFS29-S-DMX-CC24-RGBW(40K)-70-18W | 24V DC | RGBW(4000K) | UCS512B4 | 18W/m | 70pcs | 335lm±5% | 10 Pixels | 100mm | 7m | ||||
SFS29 DMX Pixel - Single Color/DW
| Model No. | Voltage | LED Color | IC Model | Power/m | LEDs/m | Lumen/m | Pixel /m | Min. Cutting Length | Max. Run Length /Single End | ||||
| SFS29-S-DMX-CC24-27K-70-15W | 24V DC | 2700K | UCS512B3 | 15W/m | 70pcs | 330lm±5% | 10 Pixels | 100mm | 7m | ||||
| SFS29-S-DMX-CC24-30K-70-15W | 24V DC | 3000K | UCS512B3 | 15W/m | 70pcs | 350lm±5% | 10 Pixels | 100mm | 7m | ||||
| SFS29-S-DMX-CC24-40K-70-15W | 24V DC | 4000K | UCS512B3 | 15W/m | 70pcs | 380lm±5% | 10 Pixels | 100mm | 7m | ||||
| SFS29-S-DMX-CC24-50K-70-15W | 24V DC | 5000K | UCS512B3 | 15W/m | 70pcs | 380lm±5% | 10 Pixels | 100mm | 7m | ||||
| SFS29-S-DMX-CC24-57K-70-15W | 24V DC | 5700K | UCS512B3 | 15W/m | 70pcs | 405lm±5% | 10 Pixels | 100mm | 7m | ||||
| SFS29-S-DMX-CC24-R-70-15W | 24V DC | Red | UCS512B3 | 15W/m | 70pcs | 180lm±5% | 10 Pixels | 100mm | 7m | ||||
| SFS29-S-DMX-CC24-G-70-15W | 24V DC | Green | UCS512B3 | 15W/m | 70pcs | 230lm±5% | 10 Pixels | 100mm | 7m | ||||
| SFS29-S-DMX-CC24-B-70-15W | 24V DC | Blue | UCS512B3 | 15W/m | 70pcs | 42lm±5% | 10 Pixels | 100mm | 7m | ||||
| SFS29-S-DMX-CC24-DW-120-17W | 24V DC | Dual White | UCS512B4 | 17W/m | 120pcs | 415lm±5% | 10 Pixels | 100mm | 7m | ||||
Related Projects
Thailand
Anhui
Guangzhou
Quick Links
E-mail: senbe007@senbelighting.com
Tel.: +86 20 3913 7589
Mob.: +86 139 2877 1493
Add.: Building B6, Huachuang Industrial Park, Shiji Town, Panyu District, Guangzhou, 511450
